/ Electrical Feedthroughs / Feedthrough / Power / Feedthrough Power 6 kV / to 27 Amps, ISO-KF Flange

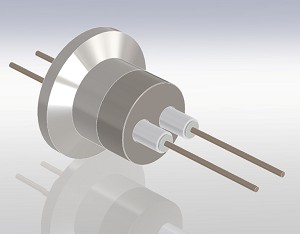

Feedthr Power KF16 2Pin 3kV 13.5 Molybd

Feedthr Power KF16 2Pin 3kV 13.5 Molybd

Item number: 17016-03-KF
In stock: No
Description:Feedthr Power KF16 2Pin 3kV 13.5 Molybd

Extra information

Specifications
Materials
Housing: 304 Stainless steel
Pin: See table
Insulation: Alumina ceramic
Flange: 304 Stainless steel
Magnetic Materials: See table
Voltage Rating See table
Current Rating See table
Temperature Range
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
1250 PSIG (86 Bar), ISO KF 0 PSIG
Leak Rate <1x10-10 mbar L/s (He)

M = Magnetic Materials

CodeFlangeMaterialPinsType 1Volt.AMPSPrice ex.Qty
17016-03-KFKF16Molybdenum2M=No3 kV DC13.5
€ 145,50
 ×1
= in stock. = out of stock.
