/ Electrical Feedthroughs / Isolator / Vacuum / Isolator - Vacuum - ID 64.0, Conflat Flange

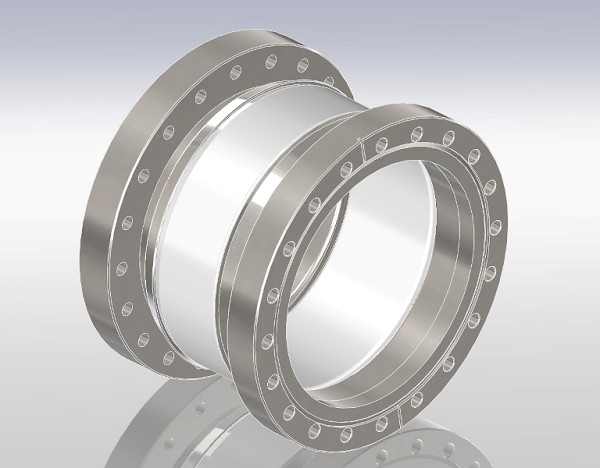

Isolator Vacuum CF 63 60kV

Isolator Vacuum CF 63 60kV

Item number: 17144-02-CF
In stock: No
Description:Isolator Vacuum CF 63 60kV

Extra information

Specifications- Vacuum
Materials
Insulation: Alumina ceramic
Magnetic Materials: Yes
Tube: 52 Nickel iron
Voltage Rating See table
Temperature Range
-269º C to 450º C
Pressure @ 20ºC
80 PSIG (5 Bar)
Leak Rate <1x10-10 atm-cc/sec (He)
Standerd 1x CF Fixed, 1x Rotatable

CodeFlangeD2 (ID size)Type 1Type 2Volt.BarPSIGTemp. Min.Temp. Max.Price ex.Qty
17144-02-CFNW63CF64A:184mmB:92.7mm60 kV DC580-269450
€ 2.279,00
 ×1
= in stock. = out of stock.
