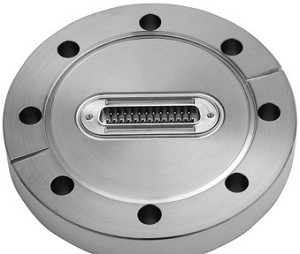

Sub D Type - 15. Pin - CF63

Extra information

Specifications Ceramtec:
Materials:
Shell: 304 Stainless steel
Pins: 300 Series Stainless steel (Gold Plated)
Insulation: Glass-ceramic
Magnetic Materials: No
Voltage Rating: 500 V DC
Current Rating: 5 Amps per pin
Temperature Range: -269°C to 450°C, ISO KF -25°C to 205°C
Pressure @ 20°C ISO KF 0 PSIG
9 Pin - 1350 PSIG (93.1 Bar)
15 Pin - 1250 PSIG (86.2 Bar)
25 Pin - 1200 PSIG (82.7 Bar)
50 Pin - 900 PSIG (62.1 Bar)
