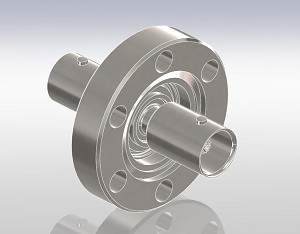

Coaxial BNC 50 Ohm H.F. Double CF16

Extra information

Specifications:

Materials:
-- Housing: SST 304
-- Pin: Inconel X-750
-- Insulation: Glass Ceramic
-- Magnetic Materials: No
Voltage Rating: 500 V DC
Current Rating: 1 AMP
Temperature range: -269°C to 350°C, ISO KF -25°C to 205°C
Pressure @ 20°C: 1400 PSIG (97 Bar), ISO KF 0 PSIG
