/ Electrical Feedthroughs / Multipin Connector / Sub C type / Multipin Connector Sub C Type, Weld

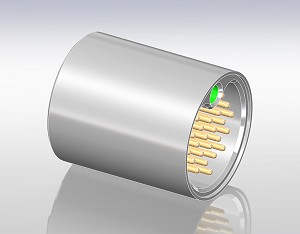

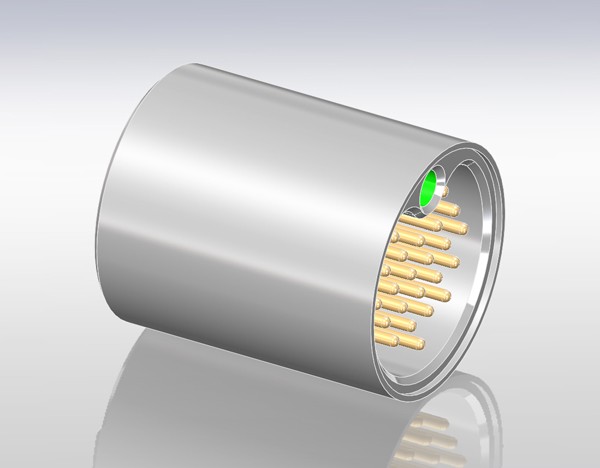

Sub C Type 23Pin Weld

Sub C Type 23Pin Weld

Item number: 24801-01-W
In stock: Yes
Description:Sub C Type 23Pin Weld

Downloads

STEP

Extra information

1- ASSEMBLY TO BE LEAK TIGHT TO 1 X 10E-9 ATM CC/SECHELIUM.
2- PINS ONLY TO BE GOLD PLATED OVER 100µin NICKEL UNDERPLATE
PER MIL-G-45204, TYPE II, GRADE C, CLASS 1 (50-150µin).
3- TEMPERAURE RANGE: -269°C to 450°C (BAKEOUT).
4- PRESSURE RATING @20°C: 1350 PSIG.
5- CURRENT RATING: 2 AMPS/PIN.
6- VOLTAGE RATING: 375 VDC.

CodeFlangeD1 (OD size)MaterialPinsVolt.AMPSTemp. Min.Temp. Max.Price ex.Qty
24801-01-WWeld15.82SHELL 304 SST, GLAS CERAMICS, PIN 330 STN SST23375 V DC2-269450
€ 304,00
 ×1
= in stock. = out of stock.
