/ Electrical Feedthroughs / Pressure / NPT / Pressure NPT, Feedthrough, Conductor

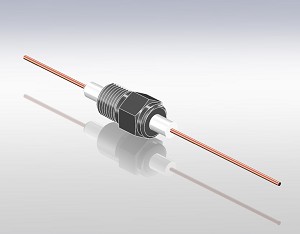

Pressure NPT Feedthr 5kV - 27A - Copper

Pressure NPT Feedthr 5kV - 27A - Copper

Item number: 2846-01-A
In stock: No
Description:Pressure NPT Feedthr 5kV - 27A - Copper

Downloads

STEP

Extra information

Materials:
NPT Fitting: SST 316
Conductor: Copper or SST 304
Insulation: Alumina ceramic

Temperature Range: -269°C to 450°C
Pressure @ 20°C: 69 to 275 Bar

* Voltage when used with airside cable assembly
Note that voltage ratings are based on a minimum of 250 volts DC per mil dielectric strength on the pressure side.

CodeMaterialType 1Type 3Type 6Volt.AMPSBarPrice ex.Qty
2846-01-ACuPin Ø1.3mmNPT 1/8"Magn. mat. Yes5 kV DC27275
€ 125,00
 ×1
= in stock. = out of stock.
