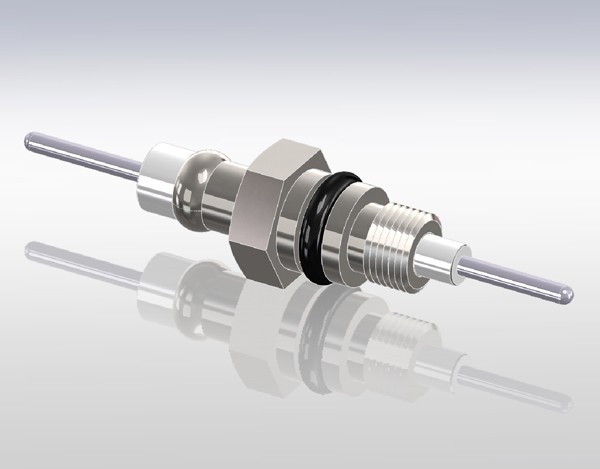

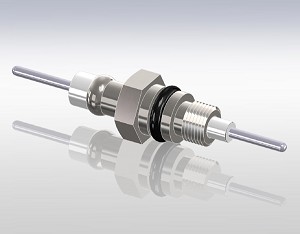

Tec-Seal 3/8 HEX 1/4-28 THREAD

Extra information

Specifications: Tec-Seal
Materials
Pin: See table
Insulation: Alumina ceramic & glass-ceramic
Magnetic Materials: Yes
O- ring: Viton®
Body: 304 Stainless steel
Voltage Rating See table
Current Rating See table
Temperature Range
-269º C to 250º C, Viton® O- ring: -25º C to 205º C
Pressure @ 20ºC
25,000 PSIG ( 1724 Bar)
Leak Rate <1x10-10 atm-cc/sec (He)
