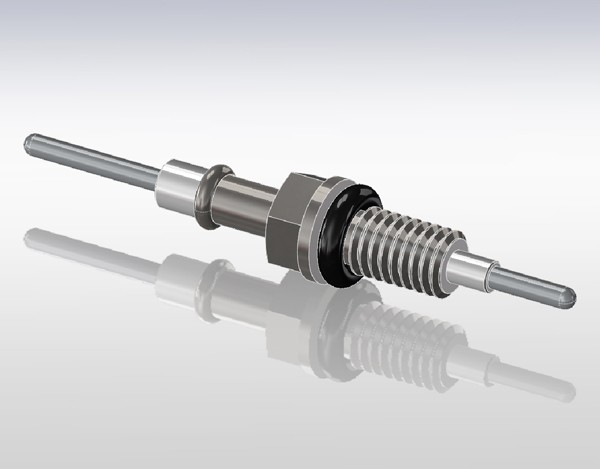

Tec-Seal 1/4 HEX 10-32 THREAD

Tec-Seal 1/4 HEX 10-32 THREAD

Item number: 50065-01-A
In stock: No
Description:Tec-Seal 1/4 HEX 10-32 THREAD

Downloads

STEP

Extra information

Tec-Seal
Materials
Pin: See table
Insulation: Alumina ceramic & glass-ceramic
Magnetic Materials: Yes
O- ring: Viton®
Body: 304 Stainless steel
Voltage Rating See table
Current Rating See table
Temperature Range
-269º C to 250º C, Viton® O- ring: -25º C to 205º C
Pressure @ 20ºC
25,000 PSIG ( 1724 Bar)
Leak Rate <1x10-10 atm-cc/sec (He)

CodeMaterialPinsType 6Type 7Type 8Volt.AMPSBarPrice ex.Qty
50065-01-ACold Rolled Steel1Mount: Countersink boreThread:10-32Hex:1/41.5 kV DC101724
€ 215,00
 ×1
