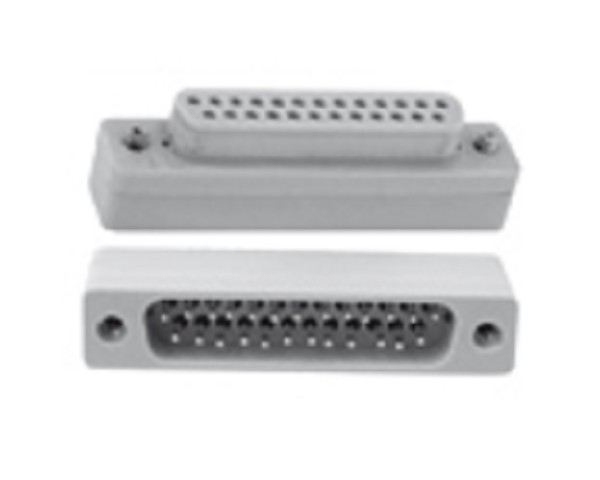

Multipin Connector Sub D Type, Vacuum Side Plug

Group number:	B002.013D
Description:	Multipin Connector Sub D Type, Vacuum Side Plug

Extra information

Multipin Connector Sub D Type
Type: Vacuum Side - Female
Voltage DC: 500 V
Quantity: 37
Amps: 5
Shell/Insulation: Peek
Contacts: Copper Alloy
-Contacts included-

Code	Flange	Pins	Volt.	AMPS	Temp. Min.	Temp. Max.	Price ex.	Qty
16810-01-A	Vacuum Side-Female	9	500 V	5	-200	200	€ 213,00	×1
19827-01-A	Vacuum Side-Male	9	500 V	5			€ 283,50	×1
16811-01-A	Vacuum Side-Female	15	500 V	5	-200	200	€ 257,50	×1
19828-01-A	Vacuum Side-Male	15	500 V	5			€ 396,00	×1
16812-01-A	Vacuum Side-Female	25	500 V	5	-200	200	€ 321,00	×1
17411-01-A	Vacuum Side-Male	25	500 V	5			€ 438,50	×1
16813-01-A	Vacuum Side - Female	37	500 V	5	-269	200	€ 480,00	×1
16814-01-A	Vacuum Side-Female	50	500 V	5	-200	200	€ 491,50	×1
19829-01-A	Vacuum Side-Male	50	500 V	5			€ 619,00	×1

= in stock. = out of stock.

Contacts, Crimp Tool

From € 974,00
