Multipin Connector, Circular Double Ended, Vacuum Side Plug

Group number:	B002.55
Description:	Multipin Connector, Circular Double Ended, Vacuum Side Plug

Extra information

Vacuum Side Plug Specifications
Materials
• Shell: 304 Stainless steel
• Crimp Contacts: Copper alloy (Gold plated)
• Insulation: PEEK (polyether ether ketone)
• Magnetic Materials: No
Voltage Rating 1 kV DC
Current Rating 5 Amps per pin
Temperature Range -200°C to 200°C

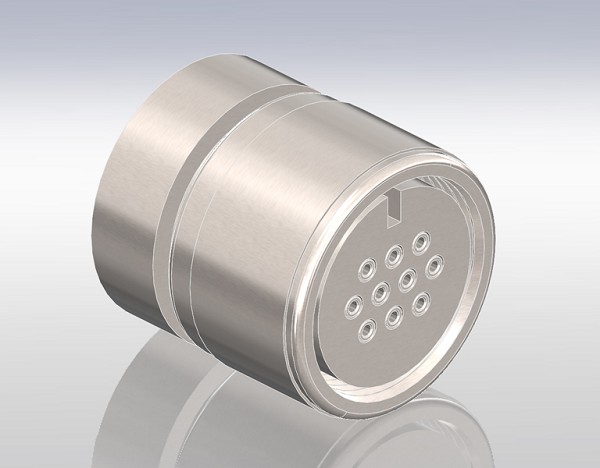

Picture example no contacts 10

Code	Flange	Pins	Volt.	AMPS	Price ex.	Qty
16026-02-A	Vacuum Side	3	1 kV DC	5	€ 182,00	×1
16027-02-A	Vacuum Side	6	1 kV DC	5	€ 154,50	×1
16028-02-A	Vacuum Side	10	1 kV DC	5	€ 177,50	×1
16029-02-A	Vacuum Side	19	1 kV DC	5	€ 232,00	×1
16030-02-A	Vacuum Side	32	1 kV DC	5	€ 281,00	×1
16031-02-A	Vacuum Side	41	1 kV DC	5	€ 401,50	×1

= in stock. = out of stock.
