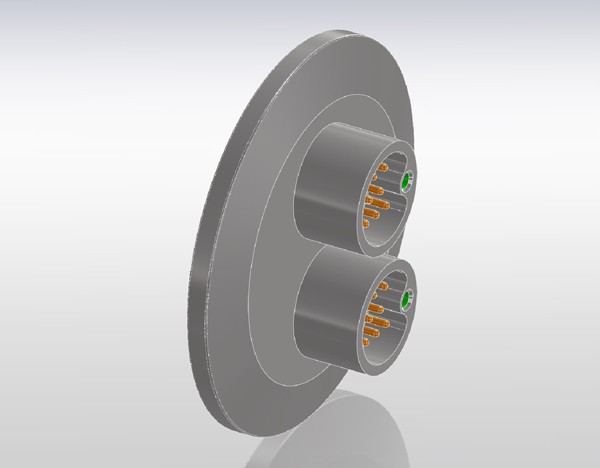

Multipin Con Sub-C 9Pin x2 KF 40

Extra information

Specifications:
Nine gold-plated pins are arranged in a straight through pin-to-pin design and are hermetically sealed and electrically insulated in a stainless steel shell using the latest in glass-ceramic bonding technology.
Sub-C Feedthrough flange features:
9-pin interface
High temperature rated to 250ºC (Feedthrough)
Voltage rating: 500 VDC max.
5 AMPs per pin (20% of pins at any given time)
Pins: Au plated, Ni-Fe alloy
