/ Thickness Monitoring / Sensor Heads / Quartz crystal sensor heads
Low Profile Single Sensor with Shutter

Low Profile Single Sensor with Shutter

Item number: HOMV-800-002
In stock: No
Description:Low Profile Single Sensor with Shutter

Extra information

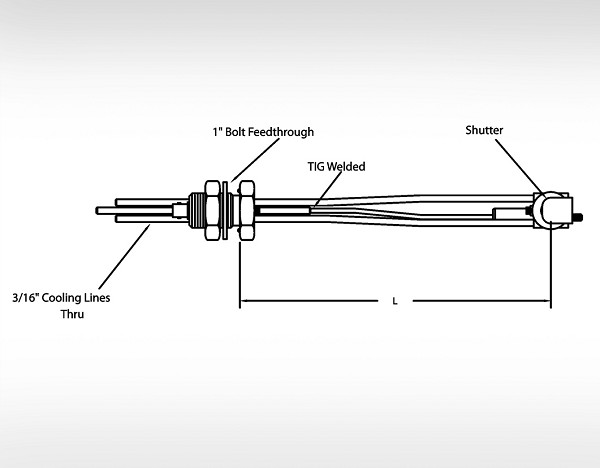

Standard Single Sensor with Shutter
Low Profile Sensor Heads up to 150°C
1" (25,4mm) Bolt Feedthrough
2 x ø 3/16" cooling lines
BNC-connector on atmosphere; microdot in vacuum
Specify Lenght L Dimension in mm
InVac Cable included

CodeFlangeMaterialTemp. Max.Price ex.Qty
HOMV-800-0021" BoltLow Profile Single Sensor Head with Shutter150
On request
 ×1
= in stock. = out of stock.
