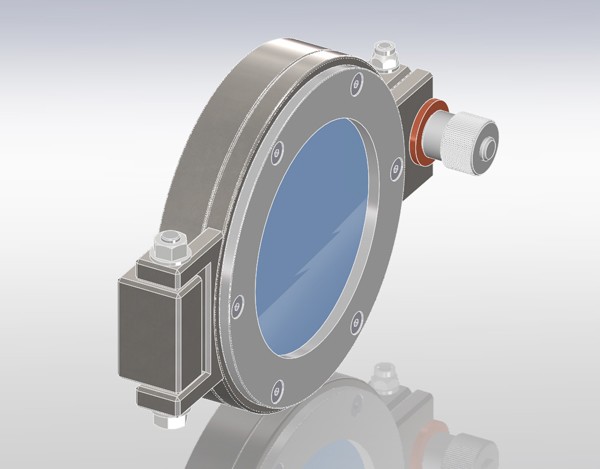

Quick Access Door with window NW150CF

Extra information

View diameter 152mm
Quick Access Door with window
• Type of Glass: Tempered glass,
• Type Material: Body SS304
• Type of sealing.: Viton o-ring
• Pressure/vacuum Range: 1.2bar~ 1x10-8 mbar
• Leak Rate: 1x10-9 mbar.l/sec
• Temperature Range.: -5° C~150° C
• Operation Temperature. NA

*Note: These doors cannot be bolted down with standard bolts from our gamma.
You will need Allen key bolts (Socket Head Cap Screw) to mount them on your system.
