Multipin Connector, Circular Double Ended, ISO-KF Flange

Extra information

Specifications Ceramtec:MIL-C-26482
Materials
Pin: 300 Series Stainless steel (Gold plated)
Insulation: Glass- ceramic
Magnetic Materials: No
Shell: Stainless steel
Voltage Rating 1 kV DC
Current Rating 5 Amps per pin
Temperature Range
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
6 Pin: 500 PSIG (34 Bar)
10 Pin: 450 PSIG (31 Bar)
3 Pin: 550 PSIG (38 Bar)
19 Pin: 400 PSIG (28 Bar)
32 Pin: 375 PSIG (26 Bar)
41 Pin: 350 PSIG (24 Bar)
Leak Rate <1x10-10 atm-cc/sec (He)

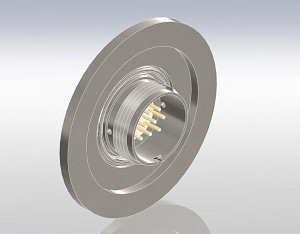

Picture example 10 Pin NW40KF
