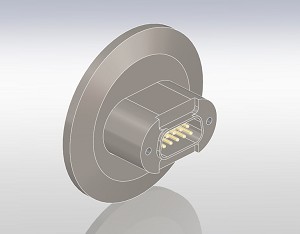

Multipin Connector Sub D Type, ISO-KF Flange

Multipin Connector Sub D Type, ISO-KF Flange

Group number: B002.002D
Description:Multipin Connector Sub D Type, ISO-KF Flange

Extra information

Specifications Ceramtec:
Materials:
Shell: 304 Stainless steel
Pins: 300 Series Stainless steel (Gold Plated)
Insulation: Glass-ceramic
Magnetic Materials: No
Voltage Rating: 500 V DC
Current Rating: 5 Amps per pin
Temperature Range: -269°C to 450°C, ISO KF -25°C to 205°C
Pressure @ 20°C ISO KF 0 PSIG
9 Pin - 1350 PSIG (93.1 Bar)
15 Pin - 1250 PSIG (86.2 Bar)
25 Pin - 1200 PSIG (82.7 Bar)
50 Pin - 900 PSIG (62.1 Bar)

CodeFlangePinsPrice ex.Qty
18605-01-KFNW40KF9
€ 291,00
 ×1
18606-01-KFNW50KF15
€ 334,00
 ×1
20306-01-CLFNW63LF25
€ 406,00
 ×1
20307-01-CLFNW100LF50
€ 626,00
 ×1
= in stock. = out of stock.
