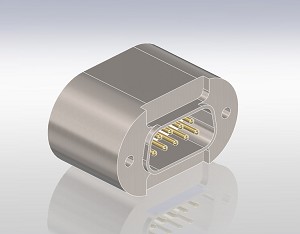

Multipin Connector Sub D Type, Weld

Group number:	B002.001
Description:	Multipin Connector Sub D Type, Weld

Extra information

Specifications Ceramtec:
Materials:
Shell: 304 Stainless steel
Pins: 300 Series Stainless steel (Gold Plated)
Insulation: Glass-ceramic
Magnetic Materials: No
Voltage Rating: 500 V DC
Current Rating: 5 Amps per pin
Temperature Range: -269°C to 450°C, ISO KF -25°C to 205°C
Pressure @ 20°C ISO KF 0 PSIG
9 Pin - 1350 PSIG (93.1 Bar)
15 Pin - 1250 PSIG (86.2 Bar)
25 Pin - 1200 PSIG (82.7 Bar)
50 Pin - 900 PSIG (62.1 Bar)

Code	Flange	Pins	Type 1	Type 2	Type 3	Volt.	AMPS	Temp. Min.	Temp. Max.	Price ex.	Qty
16800-01-W	Weld	9	A = 18.30 mm	B = 31.35 mm						€ 264,50	×1
16801-01-W	Weld	15	A = 18.30 mm	B = 39.68 mm						€ 281,00	×1
16802-01-W	Weld	25	A = 18.30 mm	B = 53.40 mm						€ 310,50	×1
16803-01-W	Weld	37	A = 18.30 mm	B = 69.55 mm	Double Ended	500 V	3	-269	450	€ 434,00	×1
16804-01-W	Weld	50	A = 21.14 mm	B = 69.55 mm						€ 417,50	×1

= in stock. = out of stock.
