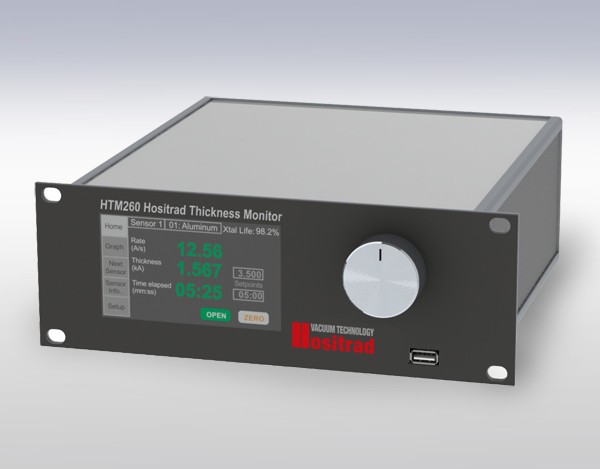

HTM260 Quartz Monitor

Extra information

HTM260 Quarz Monitor
with Display & Touch Screen
Sensor inputs: 2 (operates 2 external oszillators)
(optional up to six sensors/oszillators)
plus 1x Quartz Monitor HOQM20
"High Resolution" Measuring Unit
Max. Resolution: 0,01 Hz @ 10 Hz (readings/s)
Number of Single Measurements per sec.:
0.5, 1, 2, 4, 10 Hz adjustable
Measurement filtering: 1-20 samples with weighting
Interface: RS232, Ethernet IP; ModBUS protocol +
Inficon SQM160 protocol *
Analog outputs: 6, programmable
Digital inputs / outputs: 4 inputs;
4 Relay outputs
Supply voltage: 100-240 VAC 50/60 Hz
Dimensions: 1/2 19 " Rack, 2 HE
Weight: 0.200 kg
* with future firmware updates

Please order required external oscillator separately
