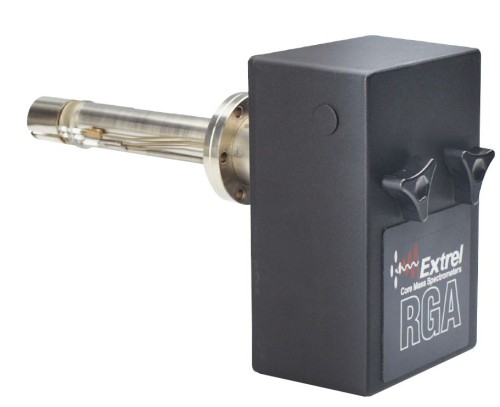

represent Extrel CMS with a wide range of flange mounted Quadrupole Mass Spectrometers and Residual Gas Analyzers (RGA) that can fit any application or budget: The research grade MAX Systems, the general use MAX-LT™ and the standard RGA Systems.

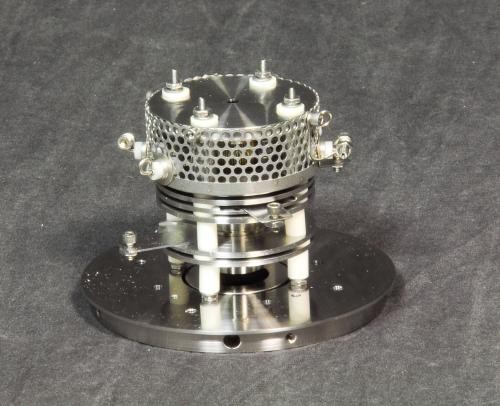

These systems include an Ionizer, Quadrupole, MassFilter, Detector, Mounting Flange, Power Supplies, Control Electronics and Software. They can be used as the core of a new mass spectrometer system, or as a way to add mass spectrometry to an existing system or as a diagnostic tool.

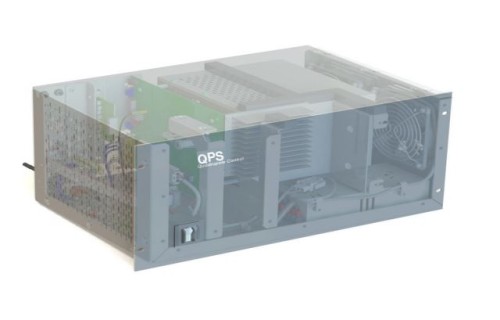

Extrel’s newest Quadrupole Power Supplies (QPS) deliver unrivalled long-term stability. Download PDF here
Here we demonstrate two of the most critical performance factors for Quadrupole Power Supplies:
• Mass Stability
• Resolution Stability

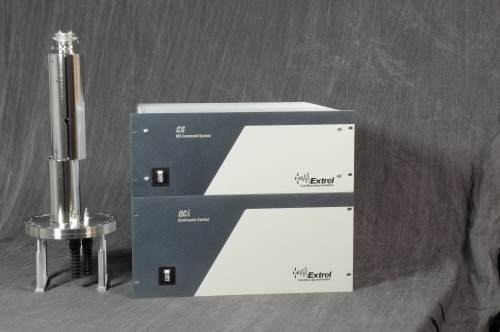

MAX Flange Mounted Mass Spectrometers
are powerful research grade instruments. They have the best performance and the widest array of options of any of our systems. They are offered in mass ranges from 1 to 50 amu up to 20 to 16.000 amu and can be upgraded for MS/MS operation. Typical applications for the MAX Systems include: Clusters and Biomolecule Analysis, Atmospheric Chemistry Studies, Plasma and Combustion Studies, Materials Analysis and He/D2 Analysis.

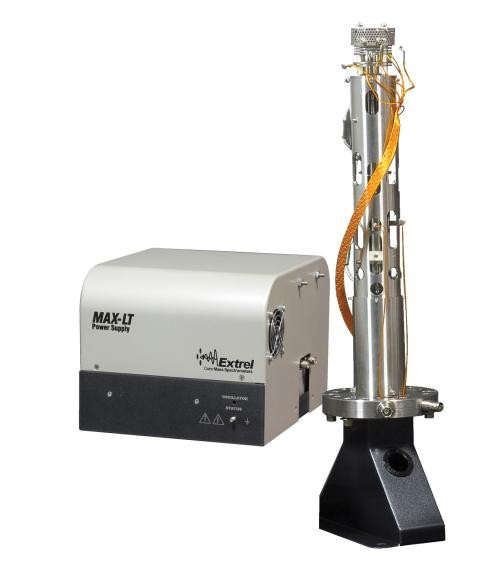

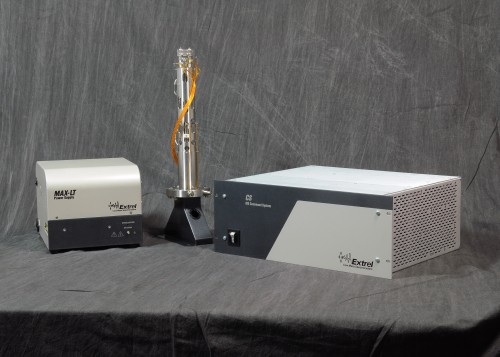

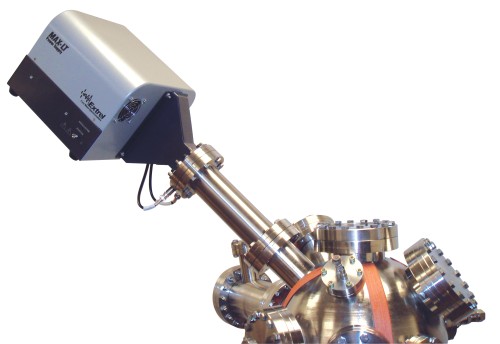

MAX-LT flange mounted RGA MS
Extrel’s MAX-LT Flange Mounted Mass Spectrometers provide research grade performance at an affordable price. They are offered in 100, 200, 500 and 1,000 amu versions with a number of options available. Typical applications for the MAX-LT systems include, Thermal Programmed Desorption (TPD) analysis, Plasma and Chemical Vapor Deposition (CVD) Analysis and UHV Residual Gas Analysis.
MAX- SIMS Quadrupole Mass Spectrometers

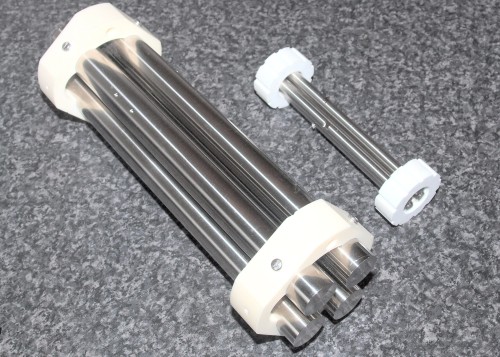

High performance SIMS quadrupole mass spectrometers. The MAX-SIMS quadrupole mass spectrometer is a high performance bolt-on instrument for static and dynamic SIMS applications. The MAX-SIMS is based on our high performance 19mm triple quadrupole mass filter, delivering exceptional transmission and resolution characteristics.
VeraSpecTrace - Ultimate Trace Gas Analyzers
The VeraSpec Trace is a truly innovative research grade instrument that takes the analytical capability of a number of Extrel’s best technologies for trace gas analysis, and makes them available for the first time in a single instrument;
• Atmospheric Pressure Ionization MS (APIMS)
• High sensitivity closed source electron impact ionization (EI)
• Membrane Inlet Mass Spectrometry (MIMS)
MAX - Molecular Beam Mass Spectrometer
Molecular Beam Mass Spectrometer (MBMS) for reaction kinetics from processes between 5E-5 Torr and atmospheric pressure. The MAX-Molecular Beam Mass Spectrometer is a compact skimmer inlet system designed for accurate and reproducible identification of reactive and intermediate chemical species from a wide range of applications in plasma chemistry, atmospheric chemistry, combustion and gasification processes, cluster deposition and analysis and chemical vapour deposition.

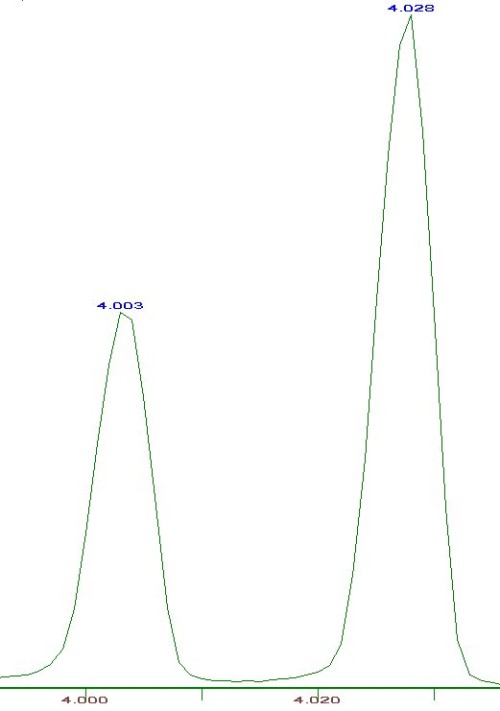

Gas Analysis - Helium / Deuterium Analysis
Extrel has also introduced the VeraSpec HRQ total analytical system. The HRQ was engineered and designed for high throughput and process analysis built around the MAX50 or MAX120 Mass Spectrometer. Heavy water analysis, low mass isotopic analysis and Helium purity are some of the industries the HRQ was designed for. More information
