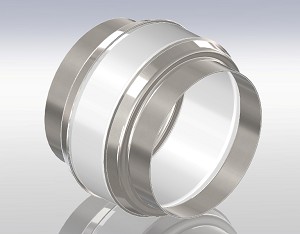

Isolator Vacuum Weld 60kV

Isolator Vacuum Weld 60kV

Item number: 17140-02-W
In stock: No
Description:Isolator Vacuum Weld 60kV

Extra information

Specifications- Vacuum
Materials
Insulation: Alumina ceramic
Magnetic Materials: Yes
Tube: 52 Nickel iron
Voltage Rating See table
Temperature Range
-269º C to 450º C
Pressure @ 20ºC
80 PSIG (5 Bar)
Leak Rate <1x10-10 atm-cc/sec (He)

CodeFlangeD2 (ID size)Type 1Type 2Volt.BarPSIGTemp. Min.Temp. Max.Price ex.Qty
17140-02-WWeld64A:165mmB:92,7mm60 kV DC580-269450
€ 1.819,50
 ×1
= in stock. = out of stock.
