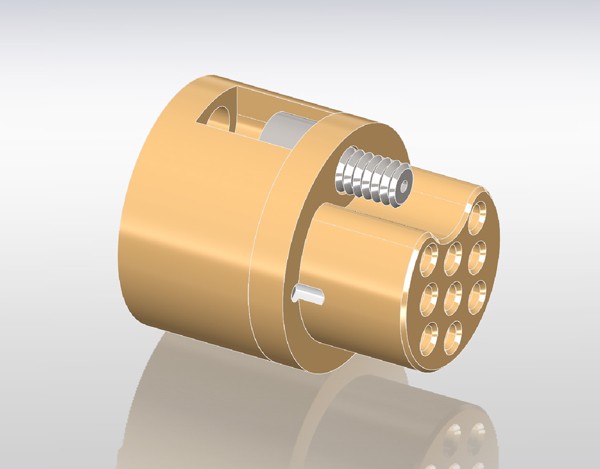

Multipin Con Sub-C Plug Vac. Side 9 Pin

Multipin Con Sub-C Plug Vac. Side 9 Pin

Item number: 24820-01-A
In stock: Yes
Description:Multipin Con Sub-C Plug Vac. Side 9 Pin

Downloads

STEP
Technical Drawing

Extra information

1- 1 EXTRA CONTACT FOR TOTAL OF 10 WILL BE SHIPPED WITH PLUG.
IF ADDITIONAL CONTACTS ARE NEEDED, THEY MAY BE PURCHASED
P/N 16757-02-A, IN PACKAGES OF 5.
2- CURRENT RATING: 15 AMPS/CONTACT.
3- VOLTAGE RATING: 500 VDC.
4- TEMPERATURE RANGE: -269°C to 200°C.

CodeFlangeMaterialPinsType 1Type 2Temp. Min.Temp. Max.Price ex.Qty
24820-01-AVacuum SidePEEK , COPPER ALLOY CONTACTS9Current Rating: 15 AMPS/ContactVoltage Rating: 500 VDC-269200
€ 170,50
 ×1
= in stock. = out of stock.
