/ Electrical Feedthroughs / Coaxial / Type N / Coaxial, Type N, Low Frequency, Conflat Flange

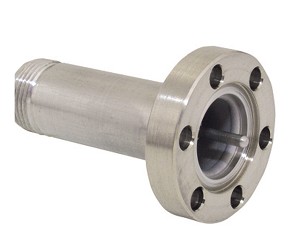

Coaxial Type N LowF SingleE CF35

Coaxial Type N LowF SingleE CF35

Item number: 7587-02-CF
In stock: No
Description:Coaxial Type N LowF SingleE CF35

Extra information

Specifications:
Materials:
Housing: 304 Stainless steel
Pin: 304 Stainless steel
Insulation: Alumina ceramic
Flange: 304 Stainless steel
Magnetic Materials: No
Voltage Rating 1.5 kV DC
Current Rating 3.6 Amps
Temperature Range
-269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
See table
Leak Rate <1x10-10 atm-cc/sec (He)

CodeFlangeType 1BarPSIGPrice ex.Qty
7587-02-CFNW35CFSingle Ended1031500
€ 255,50
 ×1
= in stock. = out of stock.
