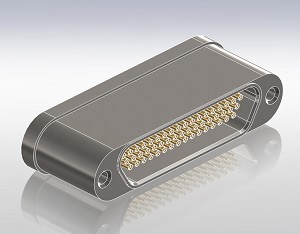

Multipin Con Micro-D Type 51 Pin Weld

Item number:	8978-07-W
In stock:	No
Description:	Multipin Con Micro-D Type 51 Pin Weld
Downloads
STEP
Technical Drawing

Extra information

Shell: 304L Stainless steel
Pins: Be-Cu Alloy (Gold plated)
Vacuum side: Male pin. Airside: Female pin
Insulation: Glass-ceramic
Magnetic Materials: No
Voltage Rating 300 V DC
Current Rating 3 Amp per pin
Temperature Range -269°C to 450°C,
ISO KF -25°C to 205°C

Code	Flange	T	L	L1	Pins	Volt.	AMPS	Price ex.	Qty
8978-07-W	Weldable	13	35.56	8.2	51	300 V	3	On request	×1

= in stock. = out of stock.

	Multipin Connector Micro-D In-Vacuum Plug	On request

	Multipin Connector Micro-D, Air Side Cable	On request

	Multipin Connector Micro-D Type, Ribbon Cable 28 AWG	On request

	Micro-D Vacuum side contact pins	On request
